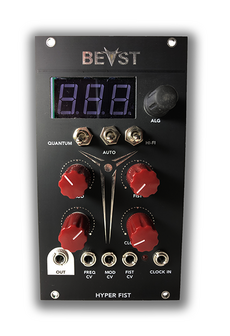

Black PCB Panel

Original Panel

Copyright © Beast-Tek. All rights reserved.

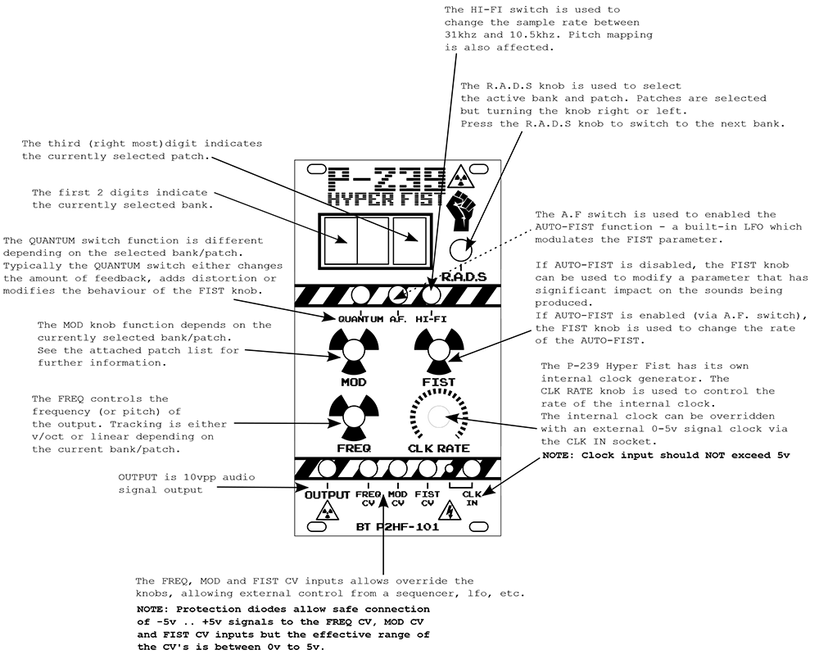

Plutonium 239 Hyper Fist VCO


The Plutonium-239 Hyper Fist is a post apocalyptic wave table VCO with a resonant lo-fi feedback delay that can produce screechy spacey drones, wild glitches in addition to functioning as a standard wavetable VCO with pluse width modulation
and waveshaping. The P-293 Hyper Fist has a clock input which can be clocked at audio rate to produce AM effects or slowly at note/beat rates to produce interesting percussive synchronization.

Price : $250 USD

Specifications:
8bit Grain table sound module

31khz / 10.5khz internal sample rate
PWM Audio @ 76.5khz
FREQ/MOD1/MOD2: -5 .. +5v safe but effective range 0..5v
Clock input: 0-5v only
On board 5v regulator, only +12/-12v rails required
Current Draw Approx 58ma on +12v rail
14HP Dual Layer Acrylic Panel @ 3mm total thickness
